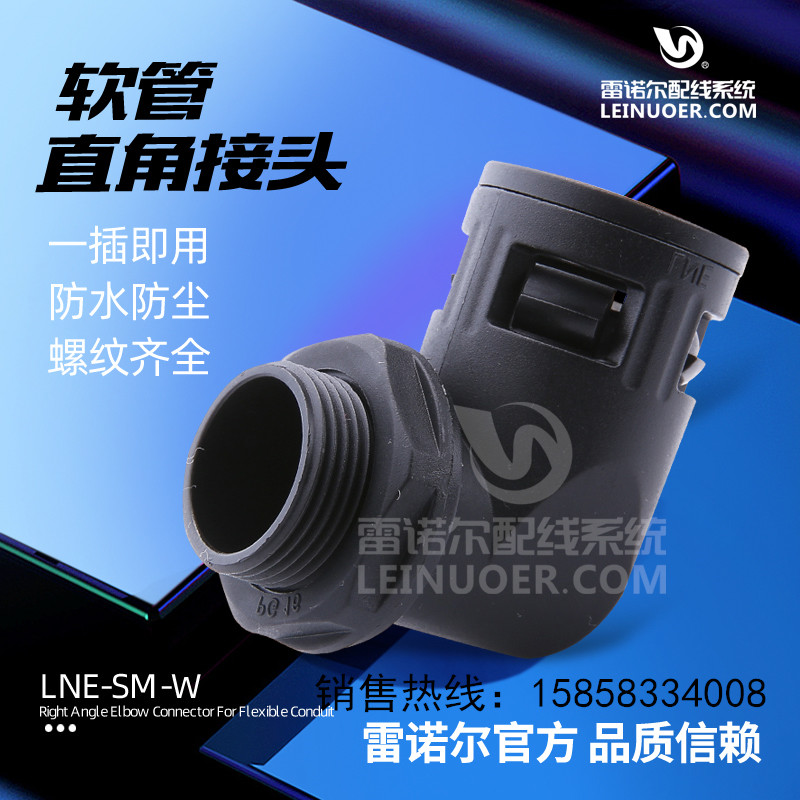

產品代碼: LNE-SM-W
產品材質: PA尼龍（polyamide）
螺紋規格: 公制螺紋（Mefric）/德制螺紋（PG）
工作溫度: -40~＋110℃
顏 色: 黑色，其他顏色可以定做
特 性: 內鎖扣和本體特殊設計，裝卸只需撥插無需工具；
使用方法: LNE-SM-W型軟管直角接頭是軟管的配套產品，可接入設備箱體上，也可以根據選用螺紋接入進出口為內螺紋的電動設備上，只需軟管插入接口即可。
| 型 號 |
AD適配軟管外徑尺寸 |
螺紋規格公制 |
螺紋外徑 |
I(mm) |
C(mm) |
E(mm) |
F(mm) |
| LNE-SM-W-M12 |
AD10.0 |
M12x1.5 |
12.0 |
9.0 |
10 |
32 |
16.0 |
| LNE-SM-W-M16 |
AD11.6 |
M16x1.5 |
16.0 |
11.0 |
10 |
34.5 |
20.0 |
| LNE-SM-W-M16 |
AD13.0 |
M16x1.5 |
16.0 |
11.0 |
10 |
34.5 |
20.0 |
| LNE-SM-W-M18 |
AD13.0 |
M18 x1.5 |
18.0 |
10.0 |
10 |
37.5 |
24.3 |
| LNE-SM-W-M20 |
AD13.0 |
M20x1.5 |
20.0 |
13.0 |
10 |
37.5 |
24.3 |
| LNE-SM-W-M16 |
AD15.8 |
M16x1.5 |
16.0 |
12.0 |
10 |
37.5 |
24.3 |
| LNE-SM-W-M18 |
AD15.8 |
M18x1.5 |
18.0 |
12.0 |
10 |
37.5 |
24.3 |
| LNE-SM-W-M20 |
AD15.8 |
M20x1.5 |
20.0 |
15.0 |
10 |
37.5 |
24.3 |
| LNE-SM-W-M20 |
AD18.5 |
M20x1.5 |
20.0 |
16.0 |
11.5 |
43.5 |
27.0 |
| LNE-SM-W-M20 |
AD21.2 |
M20x1.5 |
20.0 |
15.0 |
13 |
49 |
31.0 |
| LNE-SM-W-M24 |
AD21.2 |
M24x1.5 |
24.0 |
17.0 |
13 |
49 |
31.0 |
| LNE-SM-W-M25 |
AD21.2 |
M25x1.5 |
25.0 |
16.0 |
13 |
49 |
31.0 |
| LNE-SM-W-M25 |
AD25.0 |
M25x1.5 |
25.0 |
19.5 |
13 |
52 |
32.0 |
| LNE-SM-W-M25 |
AD28.5 |
M25x1.5 |
25.0 |
19.5 |
13 |
57 |
34.0 |
| LNE-SM-W-M27 |
AD28.5 |
M27 x2.0 |
27.0 |
23.0 |
13 |
57 |
34.0 |
| LNE-SM-W-M30 |
AD28.5 |
M30x2.0 |
30.0 |
23.0 |
13 |
57 |
34.0 |
| LNE-SM-W-M32 |
AD34.5 |
M32x1.5 |
32.0 |
27.0 |
14.5 |
64 |
43.0 |
| LNE-SM-W-M36 |
AD34.5 |
M36x2.0 |
36.0 |
29.0 |
14.5 |
64 |
43.0 |
| LNE-SM-W-M40 |
AD34.5 |
M40x1.5
|
40.0 |
30.0 |
14.5 |
64 |
43.0 |
| LNE-SM-W-M40 |
AD42.5 |
M40x1.5 |
40.0 |
35.0 |
14.5 |
72 |
50.0 |
| LNE-SM-W-M48 |
AD42.5 |
M48x2.0 |
48.0 |
38.0 |
14.5 |
72 |
50.0 |
| LNE-SM-W-M50 |
AD54.5 |
M50x1.5 |
50.0 |
44.0 |
16 |
84 |
64.0 |
| LNE-SM-W-M60 |
AD54.5 |
M60x1.5 |
60.0 |
53.0 |
16 |
84 |
64.0 |
| 型 號 |
AD適配軟管外徑尺寸 |
螺紋規格公制 |
螺紋外徑 |
I(mm) |
C(mm) |
E(mm) |
F(mm) |
| LNE-SM-W-PG7 |
AD10.0 |
PG7 |
12.5 |
9.0 |
10 |
32.0 |
16.0 |
| LNE-SM-W-PG9 |
AD13.0 |
PG9 |
15.2 |
11.6 |
10 |
34.5 |
20.0 |
| LNE-SM-W-PG11 |
AD15.8 |
PG11 |
18.6 |
13.5 |
10 |
37.5 |
24.0 |
| LNE-SM-W-PG13.5 |
AD18.5 |
PG13.5 |
20.4 |
16.0 |
11 |
43.5 |
27.0 |
| LNE-SM-W-PG16 |
AD21.2 |
PG16 |
22.5 |
17.5 |
13 |
49.0 |
31.0 |
| LNE-SM-W-PG21 |
AD28.5 |
PG21 |
28.3 |
23.0 |
13 |
57.0 |
34.0 |
| LNE-SM-W-PG29 |
AD34.5 |
PG29 |
37.0 |
30.0 |
14.5 |
64.0 |
43.0 |
| LNE-SM-W-PG36 |
AD42.5 |
PG36 |
47.0 |
38.0 |
14.5 |
72.0 |
50.0 |
| LNE-SM-W-PG48 |
AD54.5 |
PG48 |
59.3 |
52.0 |
16 |
84.0 |
64.0 |
| 型 號 |
AD適配軟管外徑尺寸 |
螺紋規格公制 |
螺紋外徑 |
I(mm) |
C(mm) |
E(mm) |
F(mm) |
| LNE-SM-W-1/2 |
21.2 |
G1/2 |
22.5 |
15.0 |
13.0 |
49.0 |
31.0 |
| LNE-SM-W-1/2 |
25.0 |
G1/2 |
25.0 |
15.0 |
13.0 |
52.0 |
32.0 |
| LNE-SM-W-3/4 |
28.5 |
G3/4 |
28.3 |
21.0 |
13.0 |
57.0 |
34.0 |
| LNE-SM-W-1″ |
34.5 |
G1″ |
37.0 |
32.0 |
14.5 |
64.0 |
43.
0
|
